Hochleistungskeramiken und -kristalle für optische, magnetische und sensorische Anwendungen

Die Angewandte Mineralogie kann neue Ideen und Strategien für die Entwicklung und Verbesserung von Hochleistungsmaterialien für optische, magnetische und sensorische Anwendungen liefern. Mit Blick auf die Korrelation zwischen atomarer Anordnung in der Kristallstruktur, der chemischen Variabilität und den physikalischen Eigenschaften von Mineralen in der Anwendung wird ein interdisziplinärer Ansatz verfolgt.

Das Verständnis und die Interpretation des Zusammenhangs zwischen Phasenbeziehungen, kristallchemischen Aspekten, Dotierungen und resultierenden physikalischen Eigenschaften kann im Fall von Leuchtstoffen sehr gut aufzeigt werden. Geeignete Ionen, wie Mn, Cr oder SEE wie Eu, Ce oder Tb, können in verschiedenste Kristallgitter eingebaut werden und damit besondere Eigenschaften verliehen.

Im Fall von BAM (Barium-ß-Aluminiumoxid) als blauem Leuchtstoff werden die Lumineszenzeigenschaften durch Eu-Dotierung optimiert. Die Analyse von Phasenbeziehungen ist relevanter Bestandteil der mineralogischen Forschung.

Prof. Dr. Göbbels



Cordierite Ceramics


Hexa-Phases in the System CaO/SrO/BaO – Al2O3 – MgO – MnO – Stability, Crystal Chemistry and Optical Properties

The improvement and development of red phosphors for fluorescent lamps is one of the important research fields in materials science. Recently the luminescence properties of red phosphors with a nominal composition referring to the formula for the Ca-hexa-aluminate CaAl12O19:Mn4+ were reported. A strong dependence of the luminescent intensity by doping with Mg and Mn was found.
In the group of hexa-aluminates compounds exhibiting magnetoplumbite- and beta-alumina structures are stable. A wide crystal chemical variety gives rise to numerous properties with large potential for chemical fine tuning.

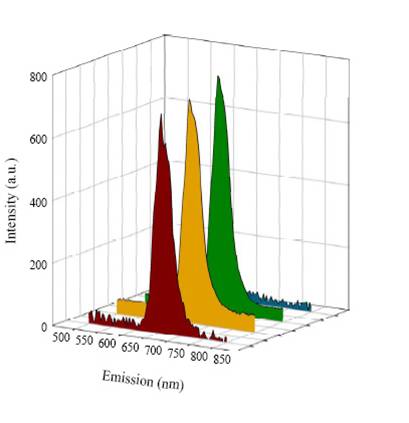

Emission spectra of the investigated samples containing Ca-hexaaluminate (red), CAMMn I (yellow & green) and Ca-dialuminate (blue)


Phase relations, crystal structure and magnetic properties of hexaferrites

In this project, phaserelations in the system SrO-Fe2O3, SrO-MeO-Fe2O3 and SrO-MeO-Me´Ox-Fe2O3 (Me = Zn, Mg, Co and Me´ = La, Ti) are studied. Furthermore the correlation of crystal structure, nonstiochiometry, charge transport and magnetic properties are characterized. Already reported compounds, such as SrFe12O19 will be verified and the crystal structures will be determined. The formation of mixed-layer compounds based on the hexaferrites and solid solution series in the multi-component systems will be studied and compounds with high saturation magnetization and anisotropy will be identified. Due to multiple substitution mechanisms optimized magnetic ceramics will be developed. In addition texture and texture-property correlations will be studied.

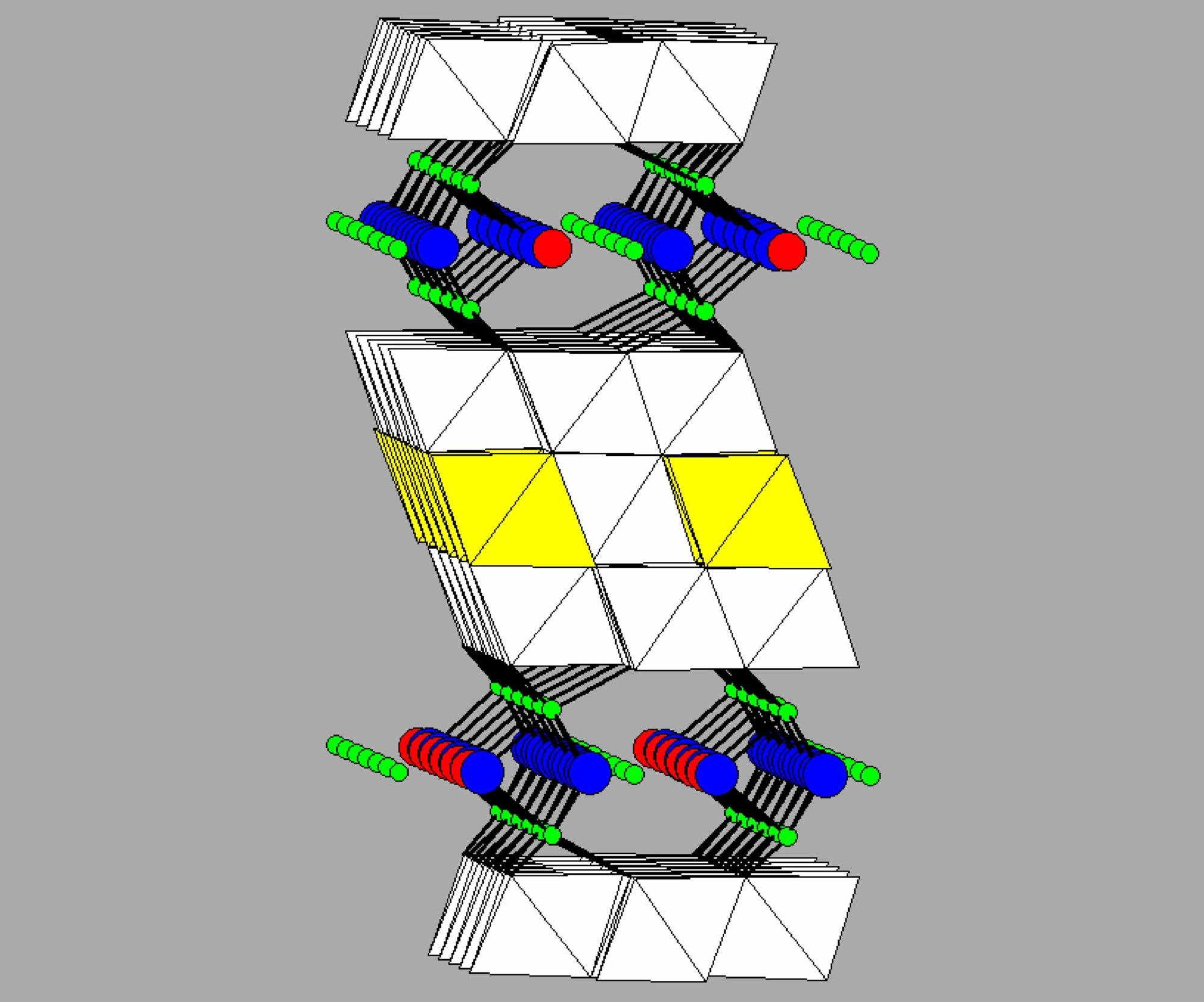

Crystal structure of magnetoplumbite

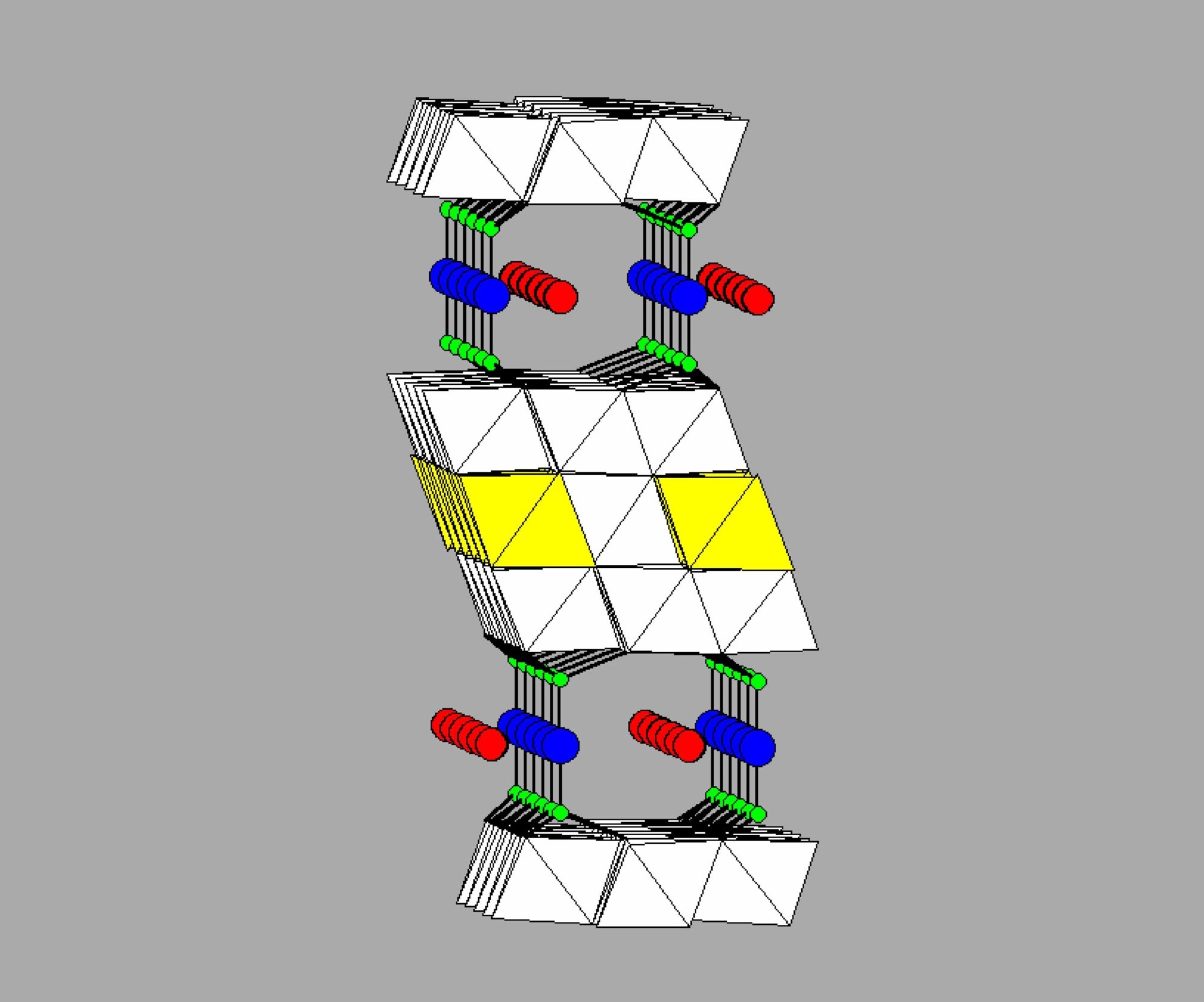

Crystal structure of barium-hexaaluminat


Zone melting for slag infiltration into refractories

Chemical corrosion due to slag attack and infiltration into refractories is one of the most important factors for application. The usual testing method using a refractory brick with a slag filled cavity in a chamber furnace does not really represent the actual situation because of the lack of temperature gradient. Other methods employing scaled down industrial furnaces are usually cost intensive and therefore not suitable for larger testing series.
In this study a crystal growth method is used for studying slag infiltration into refractories. The method chosen is the optical floating zone method which is a crucible free experimental technique for growing medium sized single crystals of about 1 cm diameter and up to 10 cm length.

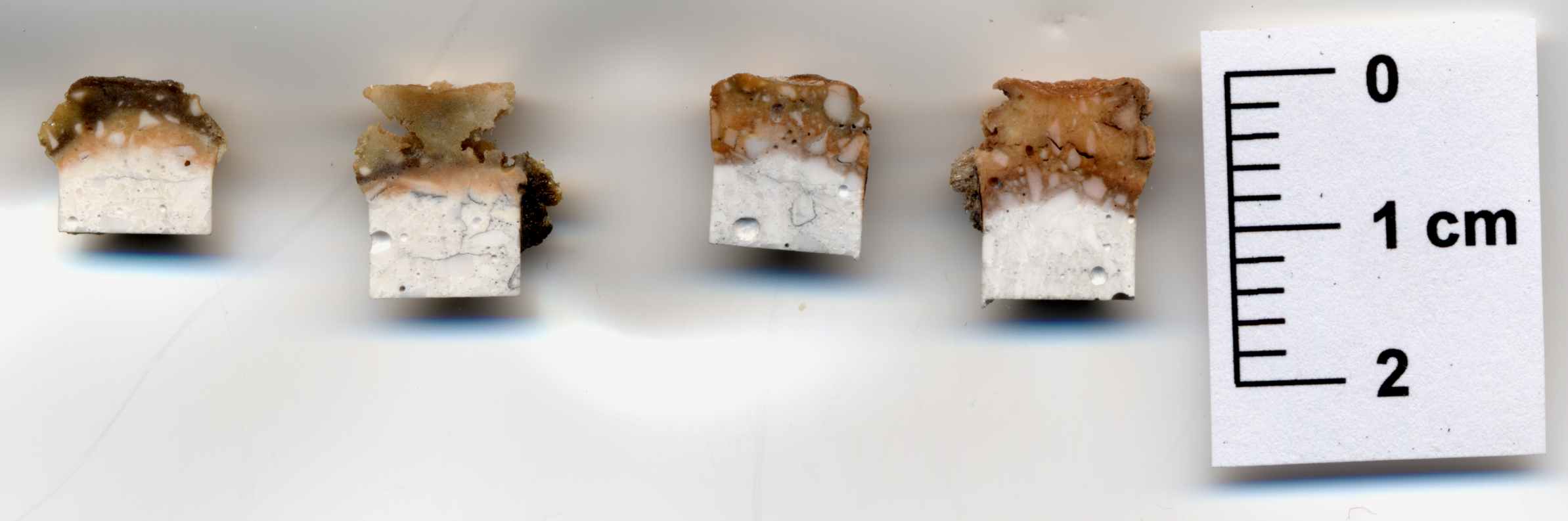

Refractories after zone melting

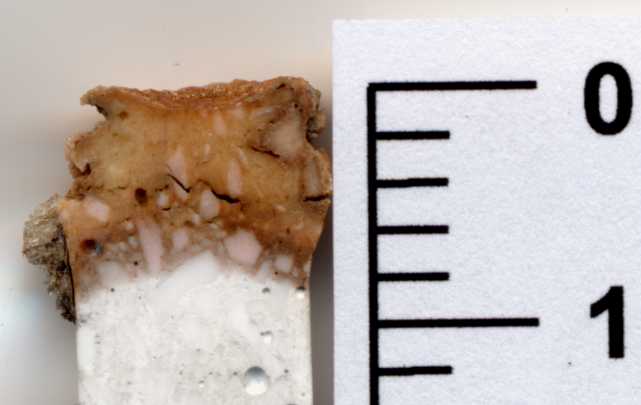

Detail of refractory

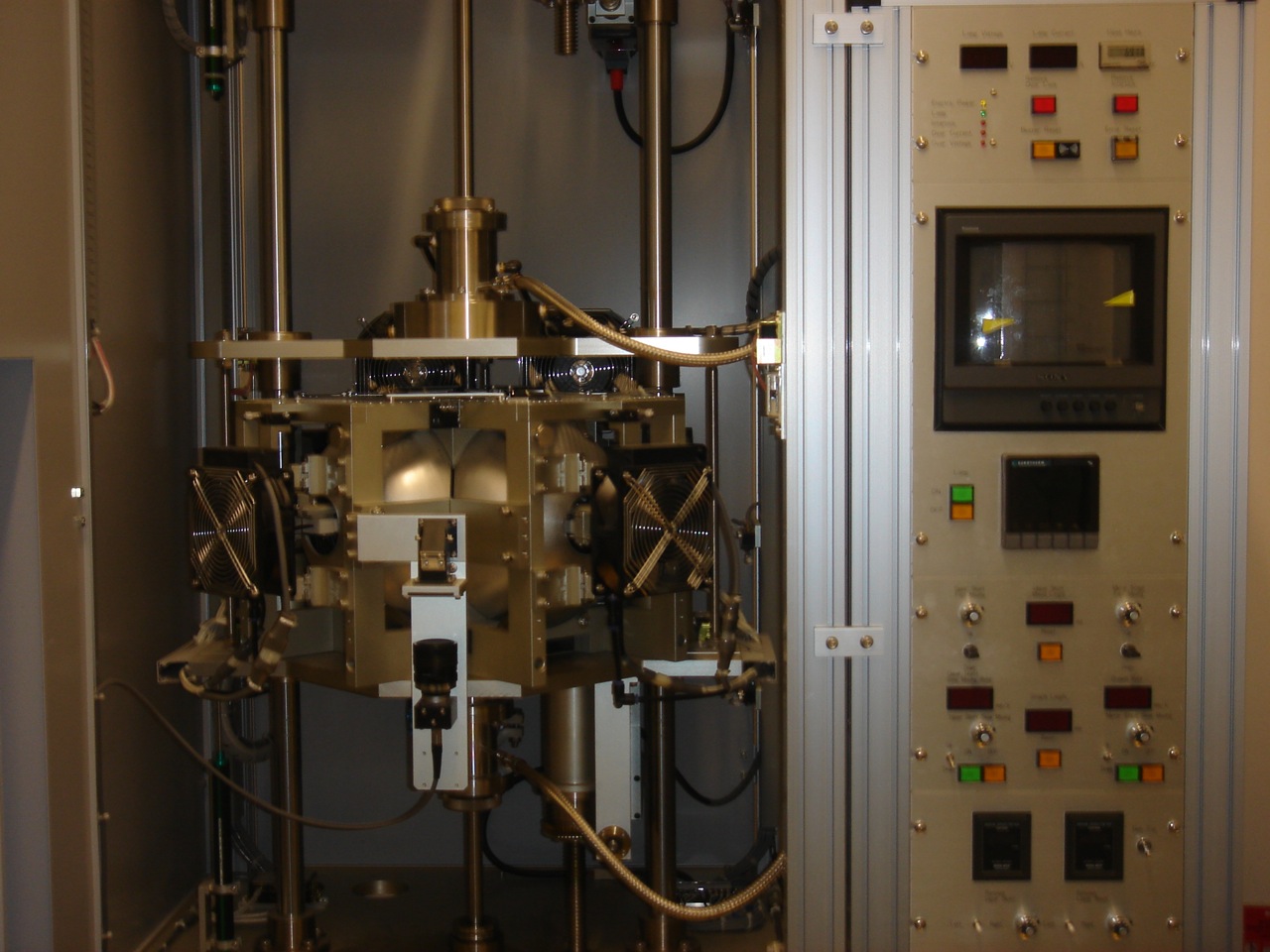

Zone melting equipment


Cordierite is an important mineral, both in the field of Petrology and in Materials Science. Its crystal chemical variability leads to wide solid solution series with subsequently changing properties.
In this project the christal chemistry and solid solution series of cordierite in the multi-component system SiO2-MgO-FeO-Al2O3-Fe2O3-Cr2O3-TiO2 will be studied. Due to channels in the crystal structure in natural cordierites volatile components depending on the formation conditions  can be incorporated. To study the temperature/pressure dependence of these incorporations single crystals are needed. Within this project the growth of single crystals by the floating zone technique will be attempted.

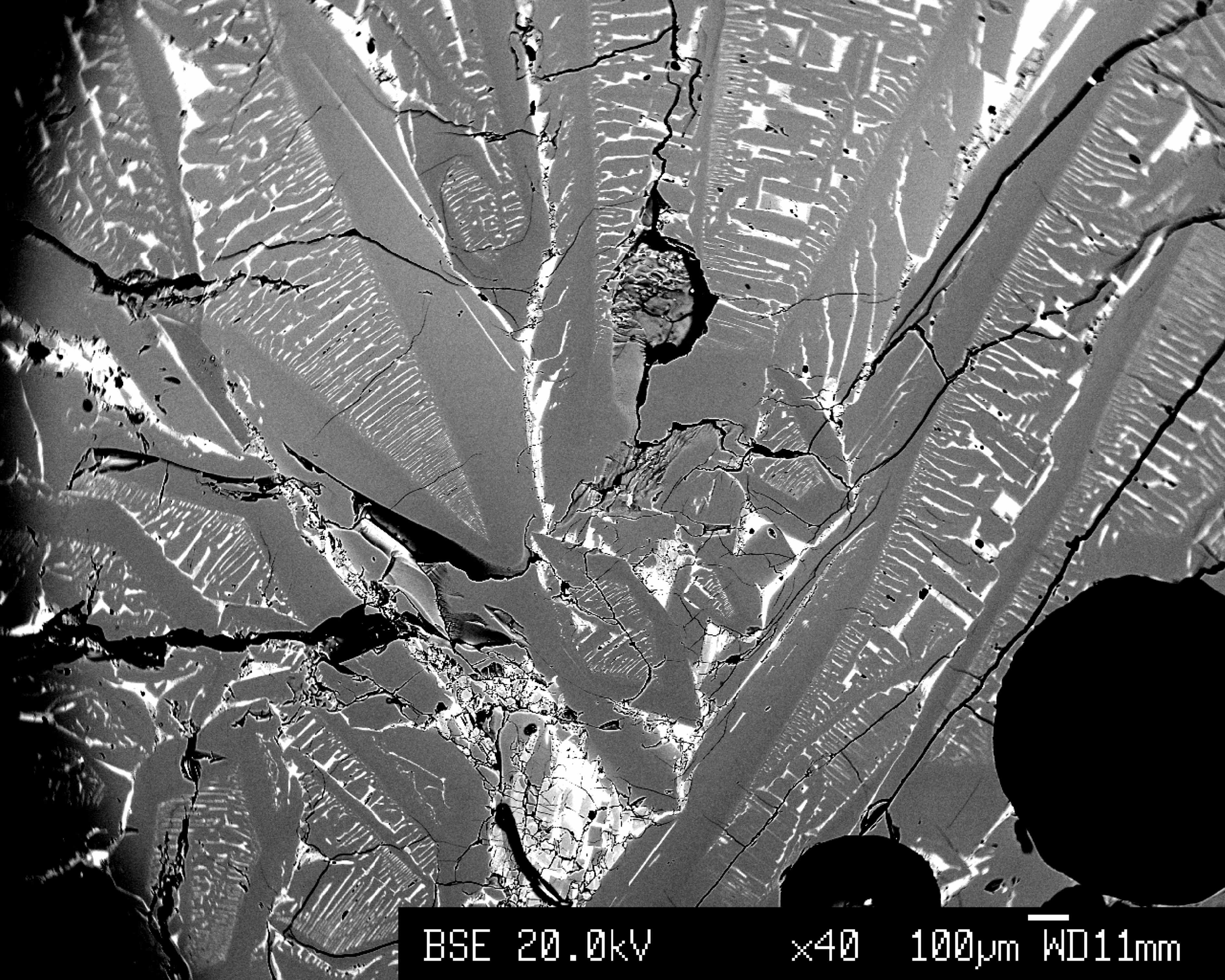

Polycrystalline cordierite ceramics

Doped REE garnets as secondary standards for petrological analysis

Natural garnets of the solid solution series pyralspite and ugrandite are important metamorphic minerals. Depending on the conditions of formation and the chemical supply there are characterisic solid solutions with different dopings of the following elements e.g. Li, Sc, Ti, Y, Yb, V, P, Zr, Cr. The quantitative detection of the dopings in the garnet lattice are difficult to be determined by microprobe analysis. The project is focused on the synthesis of aluminate-ferrite garnets by zone melting. These crystals will be prepared in slices and characterized chemically by ICP-MS and ion microprobe. The samples are finally ready for use as secondary standard material.

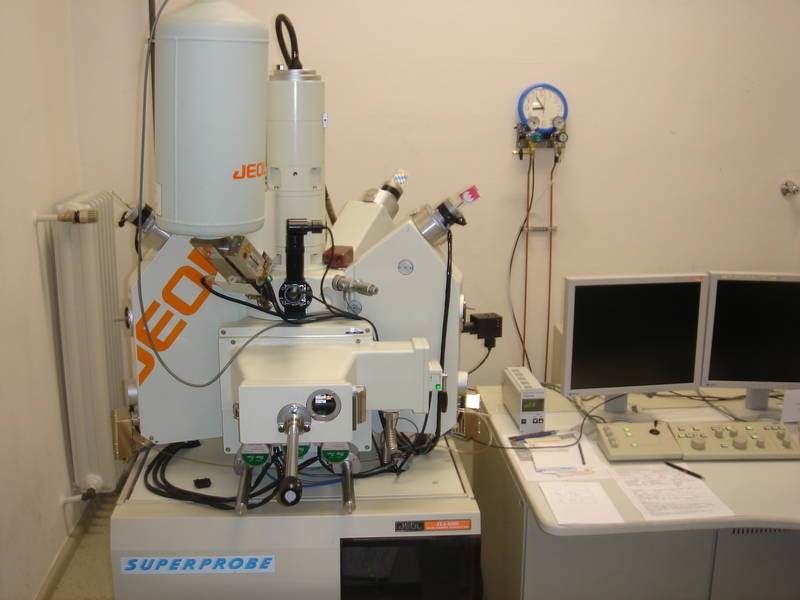

Jeol Superprobe


Zone melting equipment for single crystal growth
